350 W requires the documented 450 W or 600 W connector mode. The 300 W connector mode is limited to 310 W; actual settings must match the system power cable.
Adjacent two-GPU bridge connection; all three NVLink bridges are required. Not the H100 SXM 900 GB/s specification.
Workload focus
AI inference and HPC in PCIe accelerator servers
Dimensions & installation envelope.
Card length including I/O bracket
268.60 mm
Excludes extenders, bridges and cables.
Card length excluding I/O bracket
267.70 mm
Do not substitute this measurement for the bracket-inclusive length.
Height to lower installation datum
111.15 mm
From the top of the card to the lower datum; excludes the bracket tongue below it.
Slot occupancy
Dual-slot
Slot occupancy is not a measurement of card thickness. Confirm the supplied assembly before installation.
Installation clearance
Confirm the supplied bracket, extender, power connector and cable clearance.
Card dimensions alone do not establish server compatibility.
Product imagery is not a dimensional drawing. Confirm the overall supplied assembly and required clearance before installation.
Ordering considerations.
Confirm the exact server GPU qualification, chassis, risers, power cables, cooling and firmware before ordering. Your complete configuration will be confirmed with the quotation.
This is the 80 GB HBM2e PCIe version, not the 94 GB H100 NVL version.
Server pairing
Platforms for H100 PCIe 80GB.
Platform support depends on the exact server configuration. Ask our team to confirm the GPU option, power, cooling and installation requirements before ordering.
UP TO 4 GPUs
Lenovo ThinkSystem SR675 V3 — 4-DW
Up to 4 × NVIDIA H100 PCIe 80GB in the 4-DW configuration.
4-DW GPU model
Installation requirements & restrictions
Requires the SR675 V3 4-DW GPU model with the appropriate front shuttle and risers.
All installed GPUs must be identical.
Power supply capacity, quantity and redundancy depend on the complete server configuration. Confirm rack power before ordering.
For a field upgrade, include the Lenovo GPU supplemental power cable 4X97A84510 (BSD2).
Availability depends on the destination market; confirm the proposed delivery location before ordering.
Keep ambient temperature at 30°C or below; altitude and other installed components may require a lower limit.
Not supported in the SR675 V3 SXM5 GPU model.
The stated count is a maximum for the named GPU model, not approval of every intermediate quantity or server configuration.
The Lenovo option number identifies an OEM GPU option; it is not a NVIDIA bare-card ordering number.
This platform reference does not confirm stock, delivery dates or a complete field-upgrade kit.
H100 NVL 94GB is a different GPU option and is not covered by this mapping.
Memory capacity and bandwidth below are per GPU. A bridge group does not turn several cards into a single card, and quoted module power is not the complete server power budget.
H200 specifications are preliminary and subject to change. H100 PCIe here is the 80 GB HBM2e version, not H100 NVL 94 GB. RTX PRO 6000 is the air-cooled Server Edition, not a Workstation or Max-Q card.
SXM or PCIe: start with the platform.
SXM GPU systems
H100 SXM and H200 SXM are modules for an integrated GPU subsystem. The carrier, interconnect, heatsink or liquid-cooling assembly, firmware and system power design form part of that platform. An available PCIe slot is not an installation path for an SXM module. For replacement enquiries, provide the original server model, service identifier and full GPU assembly part number. Confirm whether the supplied item is a module, a service assembly or a complete system.
PCIe accelerator servers
H100 PCIe, H200 NVL and RTX PRO 6000 Server Edition require a supported server configuration. Check the riser and slot position, front GPU bay, supplemental power cable, power supplies, fans and airflow. Passive cards depend on the server cooling system. For an upgrade, the installed CPU generation and cooling package can restrict the GPU options even when the card appears to fit.
Check more than card length.
Bracket & clearance
A nominal form factor does not describe every projection. Allow for the I/O bracket, retention hardware, extension pieces, power connector and cable route. Measurements for a bare board must not be substituted for a complete service assembly.
Power & temperature
Maximum GPU power is only one part of the system budget. The server configuration, CPU count, redundancy policy and input voltage determine the power supply arrangement. Confirm inlet temperature, altitude limits and the correct high-performance fans.
Interconnect & quantity
NVLink bridge requirements differ by GPU variant. Use the appropriate bridge and supported card spacing. A server with eight GPU positions does not imply a single eight-card bridge group, and the maximum GPU count does not approve every possible intermediate population.
Keep OEM option numbers separate.
A NVIDIA GPU model describes the accelerator family and variant. Dell, HPE and Lenovo may supply that accelerator under their own option or service part numbers, with different brackets, cables, firmware requirements and installation kits. Matching the GPU name alone is not enough to substitute one OEM option for another. Send both the server identity and the full existing part number when requesting a replacement; our quotation will identify the proposed item and included accessories.
Prepare your GPU enquiry.
Share the exact GPU variant, required quantity, new-build or upgrade requirement, target server and current hardware configuration. Include your rack power, cooling conditions and delivery destination. If the purchase replaces an installed component, a clear label photo and the original OEM part number help avoid a mismatched option. Product images are for presentation; condition, supplied accessories, availability, lead time and delivery terms are confirmed in the formal quotation.
Attach a photo brief to the request for NVIDIA H100 PCIe 80GB. This is a checklist to agree, not a record that inspection has already been performed.
01
Label and connector views
Ask for manufacturer and OEM part numbers, front/back views and the connector or edge contacts. Capacity, interface, form factor and intended host must match the requested component.
02
Lot and condition
Record quantity, condition, firmware or hardware revision where relevant, plus representative and exception photographs. Avoid relying on one generic image for a mixed lot.
03
Protect the shipment
Request individual separation, antistatic protection and connector protection as appropriate. Show the components in trays or packing, without inventing a component-specific boot screen.

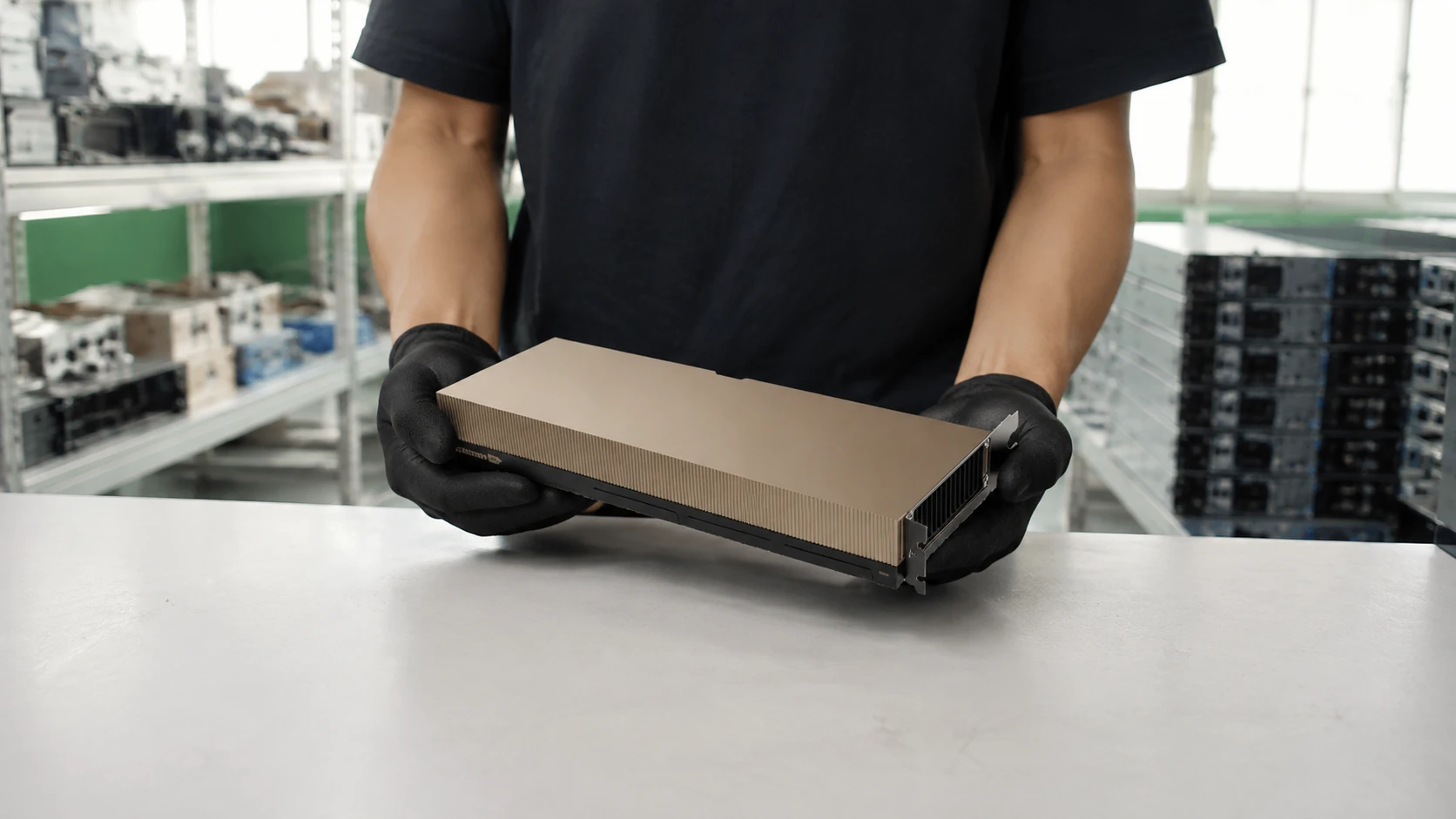

Reference-based generated scenes; actual-unit photos are available only through an explicit unit-specific request. Related models are separate catalog records, not substitutes for the item on this page.
